Solar Lights

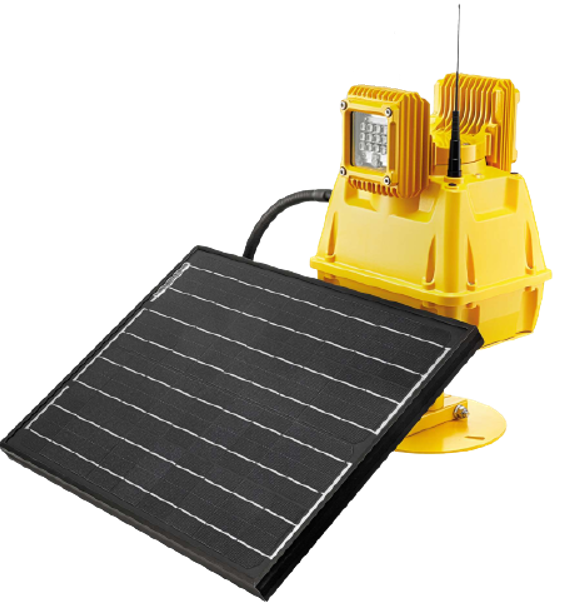

 L4GA Solar Polaris Airfield Light

Characteristics

The L4GA Polaris airfield light is typically used for non-precision airports, during airport construction and for helipads. It is available as a High-Intensity Solar Airfield light and a Medium-and-Low Intensity Solar Airfield light with multiple model types.

General Applications

Bidirectional optics designed for permanent usage on Precision Approach Runways (Cat I, II, III) in regions without access to electricity.

Applications to High-Intensity Solar Airfield lighting

Solar Runway Edge lights
Solar Threshold lights
Solar Runway End lights

Applications to Medium-and-Low Intensity Solar Airfield lighting

Solar Approach light
Solar Runway Threshold Identification light
Solar Runway Edge light
Solar Runway Threshold End light
Solar Taxiway Edge light
Solar Obstruction light Type A

Basic Features

5-level protection against system failure
Suitable for IFR runways (Cat I, II, III)
Controlled via wireless mesh type network
Hybrid version available solar + 230 VAC / 6.6A.

--------------------------------------------------------------------------------------------------------

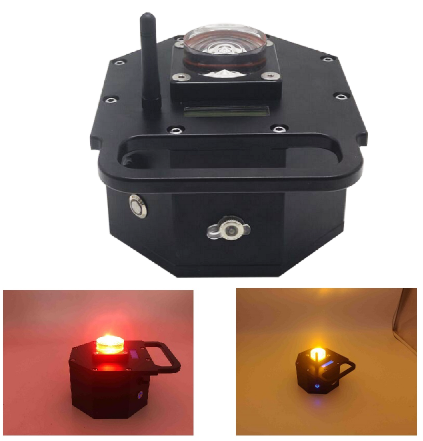

AL-PA-EMC  Solar Airfield Light for Temporary Helipads,

Permanent Heliports/Airports with no electrical power

 AL-PA-EMC Solar Airfield Light is specifically used on permanent airport/heliport where the cable power is not available or at a temporary helipad. Wireless remote control is an optional function. User can turn light on/off within 3-4km without obstacles between the light and controller.

Compliance: ICAO Annex 14 Volume ǁ Heliports 5.3. FAA AC 150/5390-2B Heliport Design Guide

Features
Ultra High intensity LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
Hard anodizing Aluminum housing ensure good UV resistance, shockproof and corrosion proof, anti-corrosion, salt-spray proof
Rechargeable lithium ion batter inside for power the LED
Charging port besides
Battery status LCD screen on top
Handle for easy move

System design
ON/OFF button located beside base

Optional
Built in photocell
Wireless remote control (433MHZ, 3KM effective distance)
NVG - compatible infrared (IR) LED
Air-to-ground Control(VHF)
Carry case(Standard for 8 light in one case, others are optional)
lx Extra battery Charger station (For Charges up to 12 Lights simultaneously)

Application
Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
Emergency operations

          ------------------------------------------------------------------------------------
