Solar Obstruction Lights

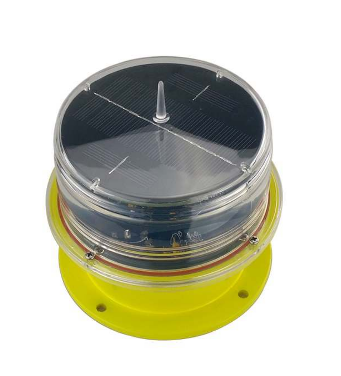

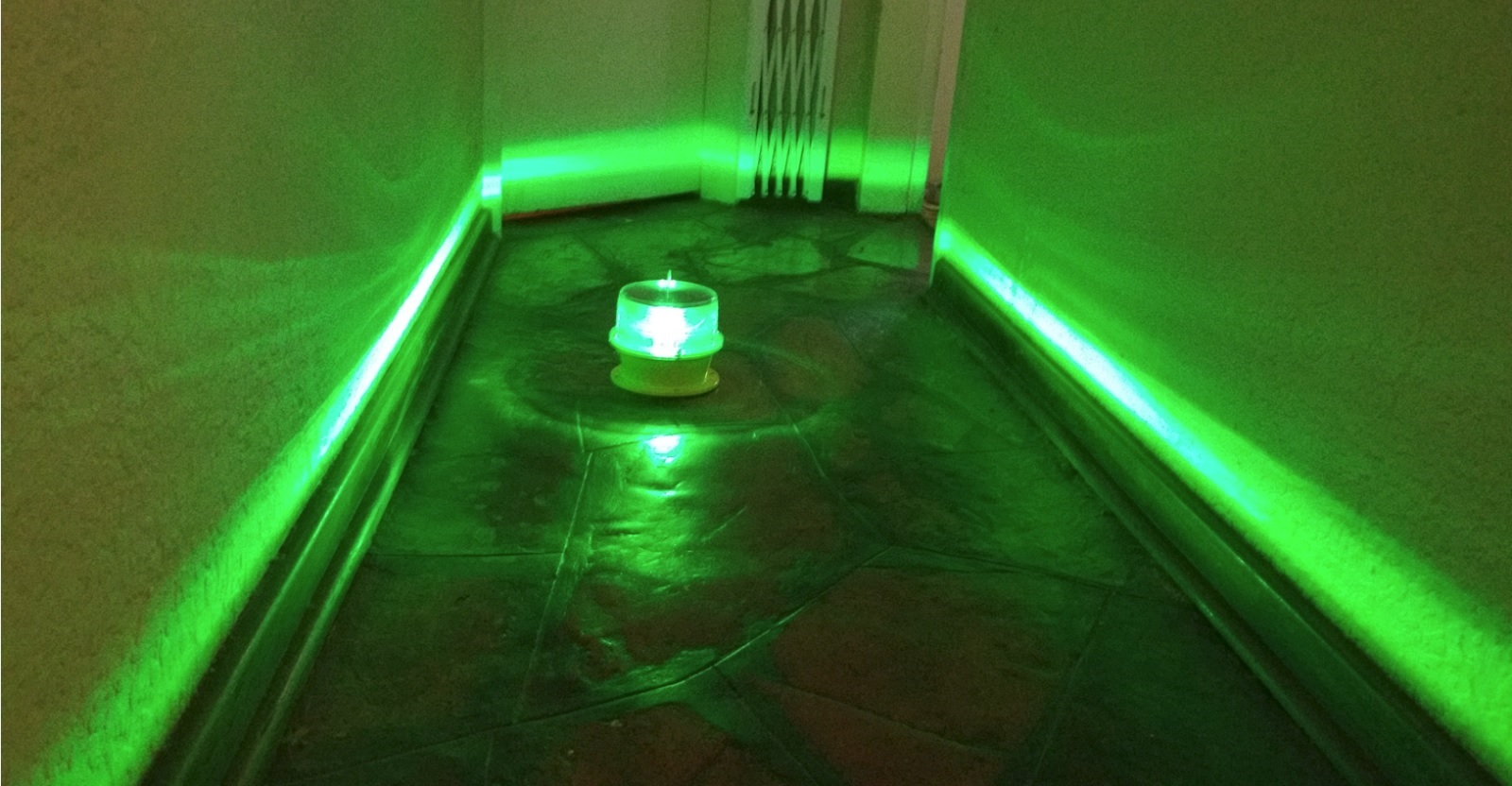

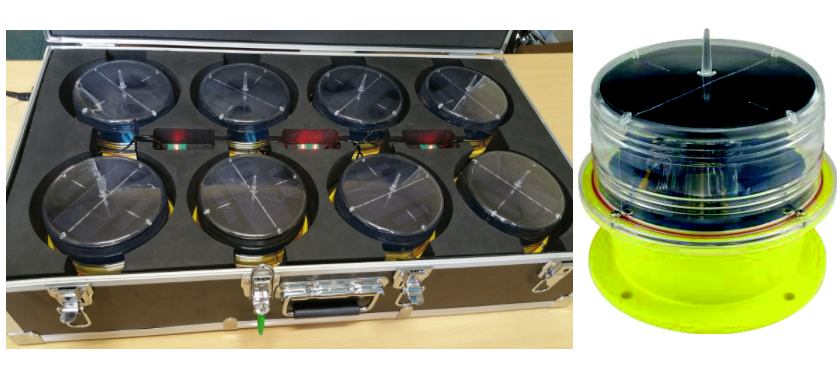

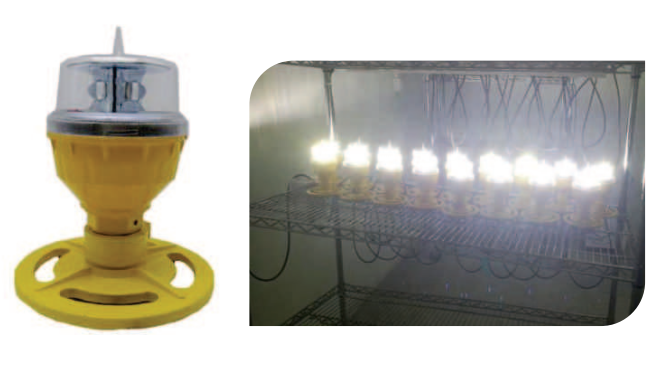

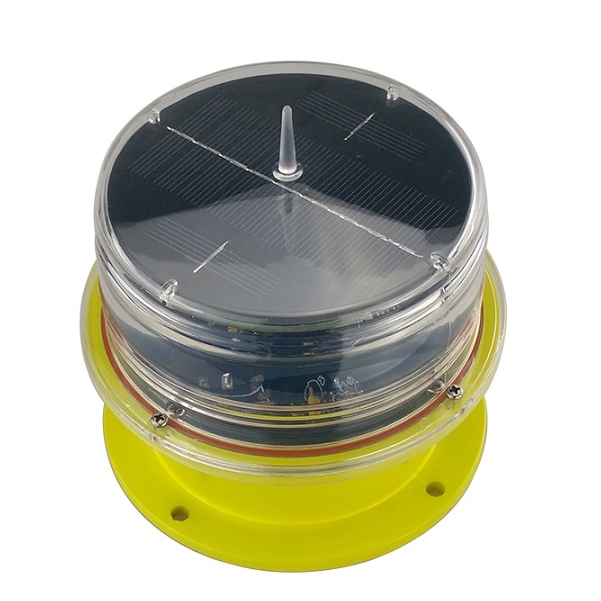

AL-LS-L SOLAR OBSTRUCTION LIGHT SINGLE

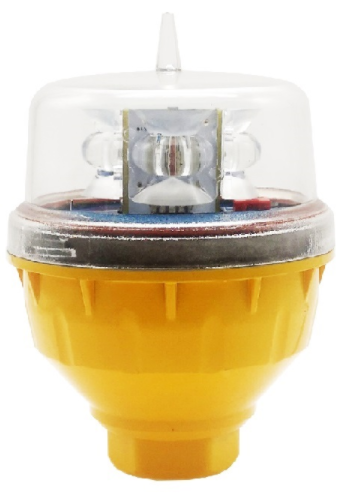

 AL-LS-L Solar Single Obstruction Light

 Features

International advanced solar panel reaching at least 10 years’ service life. Easy installation and relocation: no specialized work crew required, limited air traffic disruption and lights are immediately operational. Comprehensive protection in voltage short, over-voltage, floating, charge and temperature.
Built-in Solar Panel.
Self-contained and low maintenance: all components are incorporated within a compact,stand-alone unit. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours. Clean, renewable, green and reliable energy source. Dusk-to-dawn operation. At least 5 days autonomy without sun and 20 day on flashing mode.

Specifications
Light intensity: ≥32cd
Working mode: Steady-burning mode or Flash mode
Light source: LED,100,000hours service life
Solar panel: Monocrystalline silicon
Material Housing: Polycarbonate
Base: Die cast Aluminium
Autonomy: At least 5 days (Option 20days)
Battery: lithium ion battery, 3. 7V 10AH
Overall Size: Φ220 by 233
Installation Size: Φ190 by M10
Weight: 2Kg

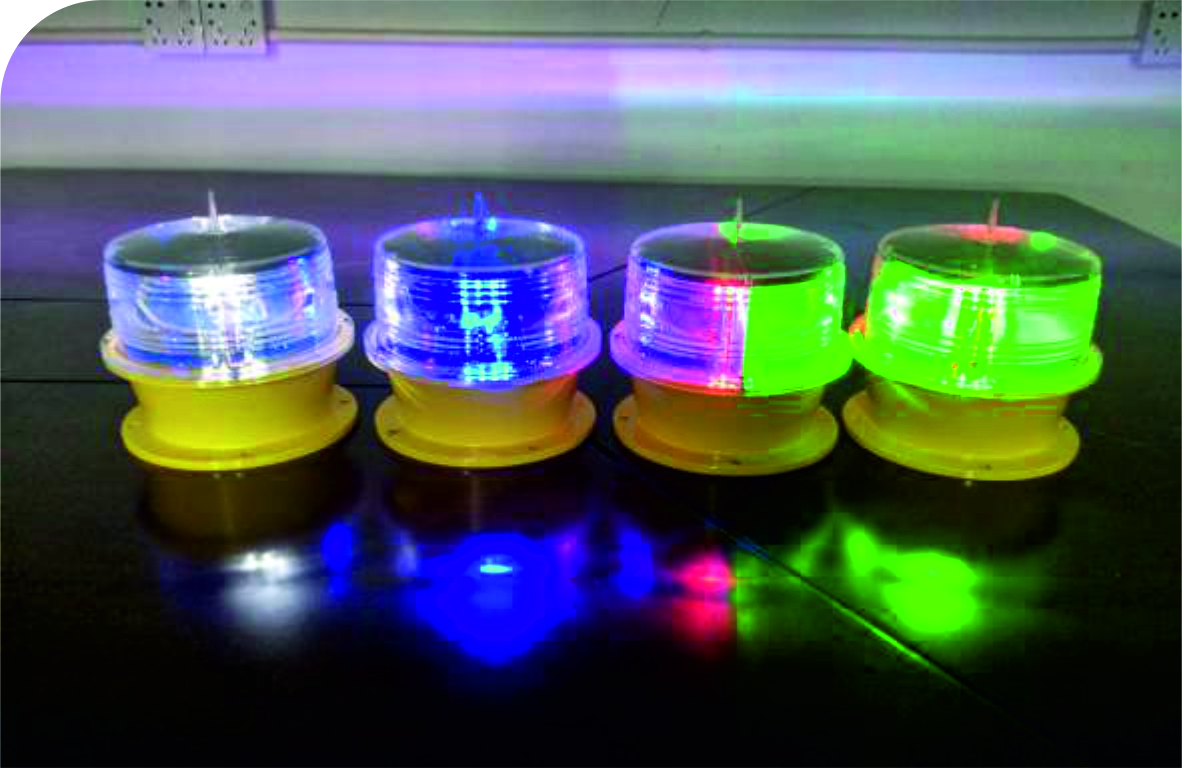

Emitting Colour: Red, green, white, yellow/ white, yellow/white, Red/white (Customized)
Ambient Temperature: -40℃~+60℃
Wind load: 80m/s
Protection Standard: IP68
Optional: charging port, remote control, NVG compatible infra-red (IR) LED's.





--------------------------------------------------------------------------------------------------

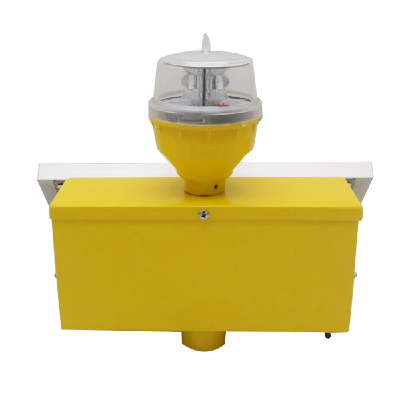

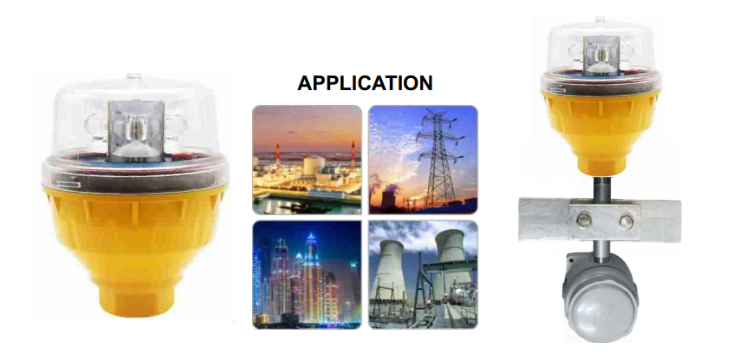

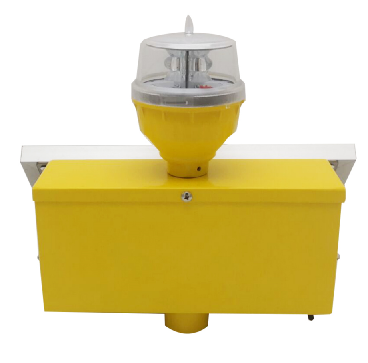

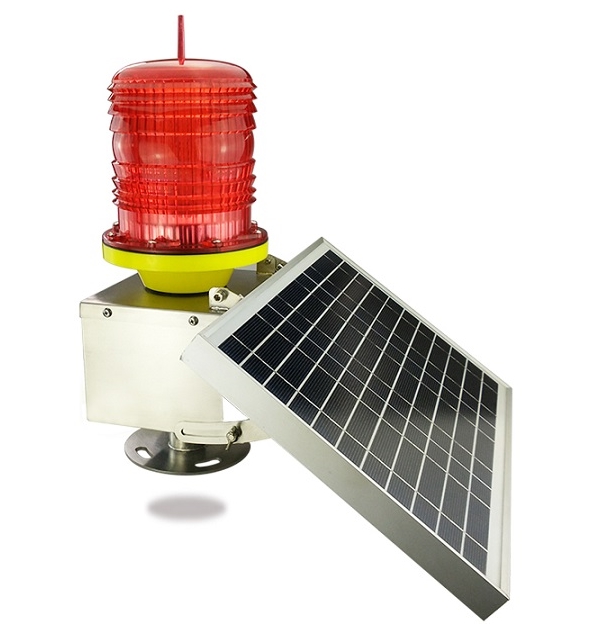

 AL-LS-A1 SOLAR LOW INTENSITY OBSTRUCTION LIGHT

AL-LS-A1 Solar LED Low-Intensity Obstruction Light

This is a self-contained obstruction light consisting of a solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure maximum sunlight in different areas. It is designed for marking the tops of obstacles that do not exceed 45meters in height.

Applications: This low-intensity specialised light is used on the top of High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and other facilities which have high requirements on lightning protection. Used alone on the top of obstacles whose height is less than 45meters.

Compliance: ICAO Annex 14Volume 1,Seventh edition, 2016,table 6-1,6-2 Low Intensity Type A/B IE Obstruction Light and FAAL-810.

Features: 3 high power CREE LED ensures LED keeps bright while in use. With bird needle to prevent bird drop. UV & vibration protected polycatbonate lens for converging light. Powder coated die casting aluminum base, light fastness, snow and rain resistance. Battery box made of corrosion resistance 304 stainless steel. Self-contained without external power supply. No wiring required. Solar panel as sensor(Photodiode) for day &night working mode(dusk to dawn mode). ON/OFF button under base for easy control. Steady/flashing (20fpm)adjustable switch. Solar panel angel is adjustable. Surge & Lightning protection.

Optional Extra's: Infrared LED for pilot using NVG (Night Vision Goggles). Stainless Steel needle strips for Solar Panel.

Light Characteristics

Light Source: 3 High intensity CREE LED
Emitting Colour: Red Intensity(cd): >32.5cd Horizontal Output(degrees): 360
Vertical Divergence(degrees): 10
Flash Characteristics: Steady/Flashing(20fpm)adjustable Operation Mode: Dusk-to-Dawn operation
LED Life Experience(hours): >100,000.





-----------------------------------------------------------------------------------------------

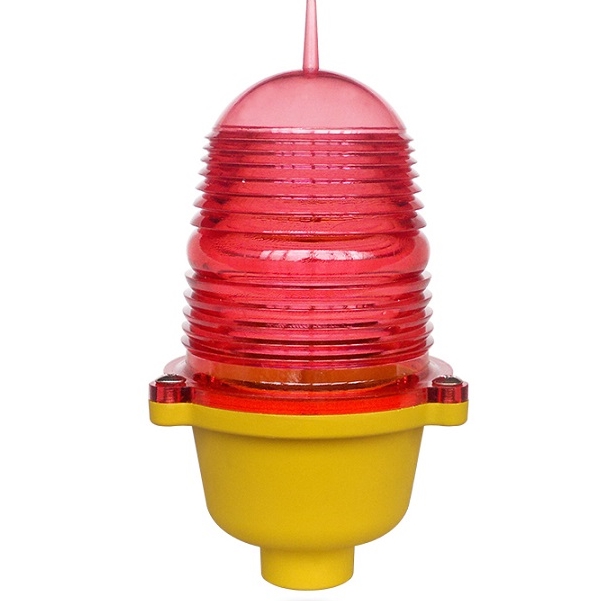

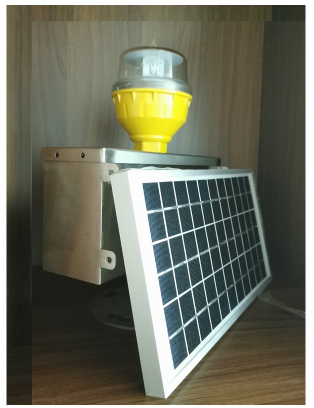

 AL-LS-A SINGLE SOLAR LOW INTENSITY OBSTRUCTION LIGHT

AL-LS-A Single Solar Powered Low-Intensity Obstruction Light
This is a self-contained obstruction light which consists of a solar panel, battery and lamp. There is no need for external power input.The vertical degree of the solar panel is adjustable to ensure maximum sunlight in different areas. It is designed for marking the tops of obstacles that not exceed 45meters in height.

Compliance : CAO Annex 14 Volume 1, Sixth edition 2013, table 6.3 Low Intensity Type A/B Obstruction light.FAAL-810.

Features : LED as light source, life experience>100,000hours. With bird needle to prevent bird drop. UV & vibration protected polycarbonate lens for converging light. Powder coated die-casting Aluminium base, light fastness, snow and rain resistance. Battery box made of corrosion resistance 304 stainless steel.
Self-contained without external power supply. No wiring required saving on cable & installation costs. Solar panel as sensor (Photodiode) for day & night working mode (dusk to dawn mode). ON/OFF button under base for easy control.
Steady/flashing (20fpm) adjustable switch.
Solar panel is adjustable (Vertical 15-90°)

Optional Extras : GSM cellphone monitoring. Infrared LED for pilot using NVG (Night Vision Goggles). Remote control ON/OFF.

Applications : This low-intensity light is specifically used on the tops of the High Chimney, Telecommunication tower, WindTurbine where there is no cable power supply and those facilities which have high requirements on lightning protection. Used alone on the top of obstacles whose height is less than 45meters.

Light Characteristics

Light Source: LED Emitting
Colour: Red Intensity (cd): Ss32.5cd
Horizontal Output (degrees): 360
Vertical Divergence (degrees): >10
Flash Characteristics: Steady/Flashing (20fpm) adjustable Operation Mode: Dusk-to-Dawn operation
Low-Intensity Double Solar Powered Obstruction light

LED Life Experience (hours): >100,000





-----------------------------------------------------------------------------------------------------

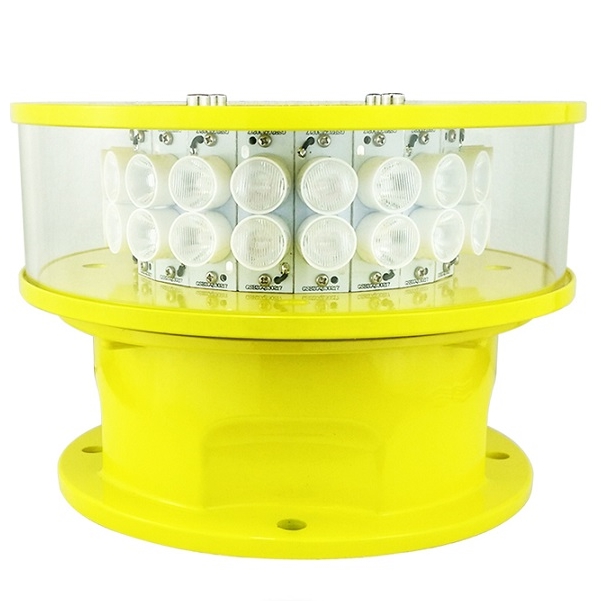

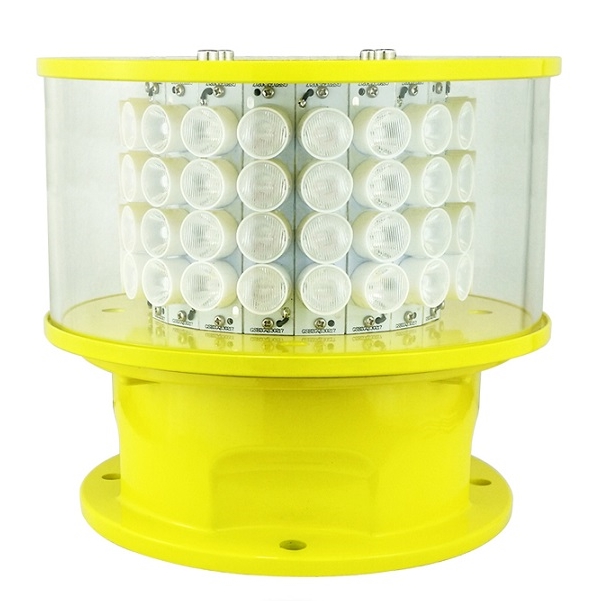

 AL-MS-B1 SOLAR LIGHT MEDIUM INTENSITY TYPE B

 AL-MS-B1 Solar Obstruction Light Medium-Intensity Type B

 This Medium-intensity Type B Aviation Obstruction Light flashing red colour, is designed for marking the top of obstacles whose height is between 45 to 105meters. CREE Ultra high intensity LED is used as light source for imporved performance. Four (4 )solar panels are integrated into the assembly and mounted to collect sunlight at all angles. GPS device is optional for AH MS/B, it makes different lights flash synchronously.

 Compliance: ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light and FAA L-864.

 Features : Ultra-high intensity CREE LED light source saving power consumption and maintenance. UV & vibration protected polycarbonate lens for converging light. Self-contained without external power supply. No wiring required. 4-side mono crystalline silicon solar panel, where conversion efficiency is better than poly crystalline silicon. Battery VRLA (Value-Regulated Lead Acid battery). Solar panel as photocell for day & night working mode(dusk to dawn mode).Interface ON/OFF button is more reliable and easier for local control.

 Optional Extra's: GPS Synchronization. GSM cellphone monitoring. Infrared LED for pilot using NVG. Remote control ON/OFF. External battery charging port.

 Application: On the tops of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and facilities which have high lightning protection requirements that mostly come with the low intensity lights which are installed on lower places.

 Light Characteristics

Light Source:Ultra high intensity CREE LED
Emitting Colour:Red
Intensity(cd):2000cd±25%
Horizontal Output (degrees):360
Vertical Divergence (degrees):>3
Flash Characteristics:Flashing 20FPM
Operation Mode:Dusk-to-Dawn operation
LED Life Experience(hours):>100,000.





----------------------------------------------------------------------------------------------------

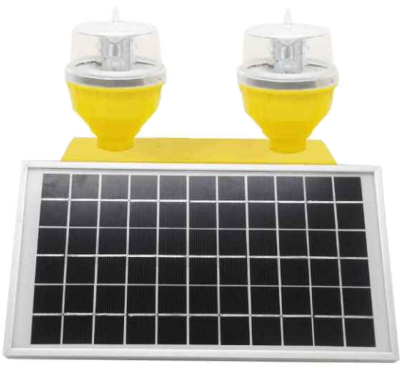

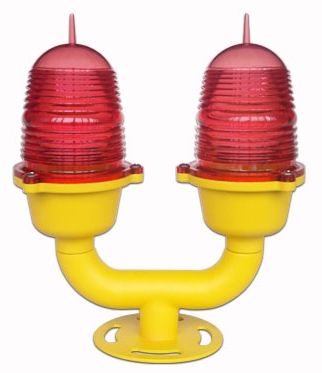

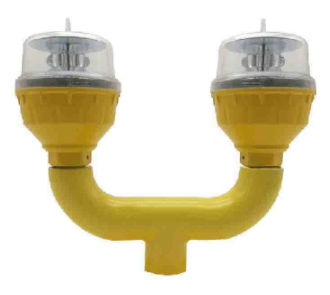

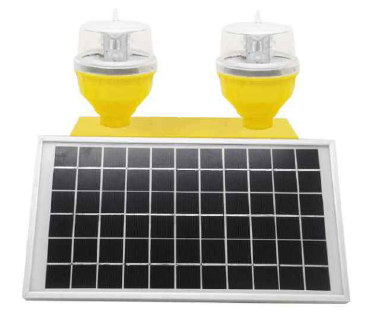

 AL-LS-A2 SOLAR LOW INTENSITY DOUBLE OBSTRUCTION LIGHT

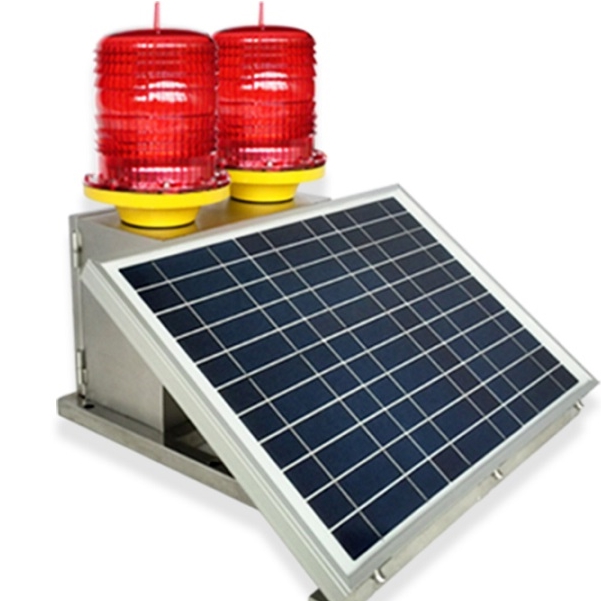

 AL-LS-A2 Solar Low-Intensity Double Obstruction Light

 This type of LED Low-intensity Double Solar Aviation Obstruction light encompasses a highly efficient mono crystalline silicon solar panel, and solar lithium ion battery as a power supply. There are two lamps on the battery box: one is a main lamp, the other is standby. When main lamp fails, the standby light turns on automatically. 3/4inch thread hole under base suitable for pole mounting.

 Application: Specialized use on top of High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and facilities which have high requirements on lightning protection. Used alone on top of obstacles where height is less than 45meters.

Compliance: ICAO Annex 14 Volume 1,Seventh edition, 2016, table 6.3 Low Intensity Type A/B/E Obstruction Light and FAAL-810.

Features : LED as light source, life experience>100,000hours.Bird needle to prevent bird drop. UV & vibrations protected polycarbonate lens for converging light. Stainless steel 304 base, light fastness, snow and rain resistant. Mono crystalline silicon solar panel where conversion efficiency is better than a poly crystalline silicon. Solar panel angel is adjustable. Solar panel as photocell(Photodiode) for day & night working mode(dusk to dawn mode). ON/OFF button for easy control. Main-standby mode.

Optional Extra's: Infrared LED for pilot using NVG(Night Vision Goggles). GPS sync flashing. External battery charger.

Light Characteristics

Light Source:LED
Emitting Colour:Red
Intensity(cd):>32.5cd
HorizontalOutput(degrees):360
VerticalDivergence(degrees):>10
Flash Characteristics:Steady/20FPM adjustable
Operation Mode: Main-standby,Dusk-to-Dawn operation
LED Life Experience(hours):>100,000.





--------------------------------------------------------------------------------------------------------

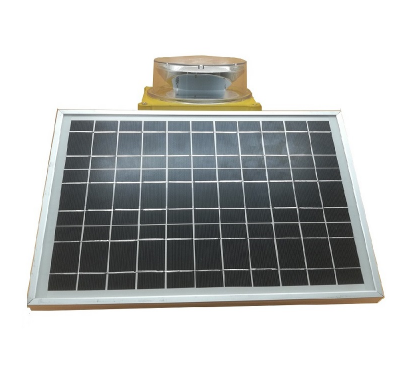

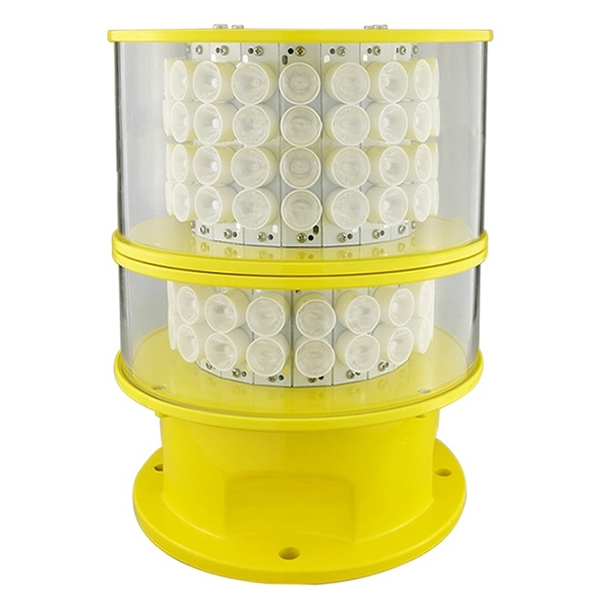

 AL-MS-A SOLAR MEDIUM INTENSITY OBSTRUCTION LIGHT

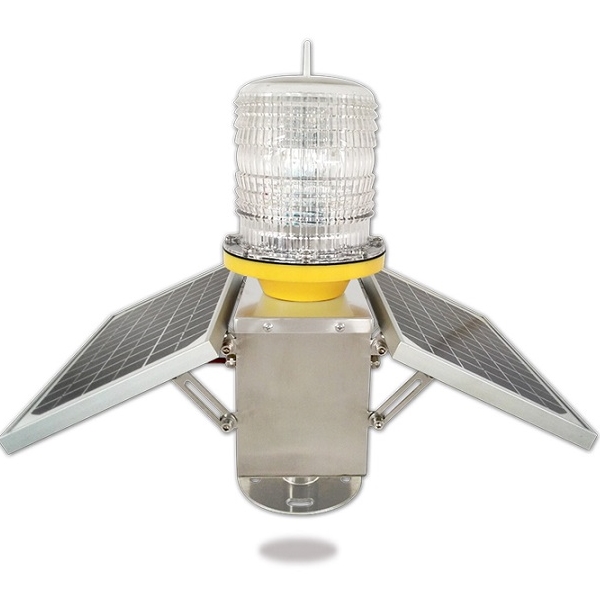

AL-MS-A Solar Medium-Intensity Obstruction Light

This Medium-intensity Type A Aviation Obstruction Light flashes a white colour, it is designed for marking the tops of obstacles whose height is between 105 to 150meters. Side open Stainless steel 304 material of battery box can be easily opened for maintenance convenience.

Compliance: ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type A Obstruction Light and FAAL-865.

Features : Ultra high intensity CREE LED light source saving power consumption and maintenance. UV & vibration protected polycarbonate lens for converging light. Self-contained without external power supply. No wiring required. Side open stainless steel battery box. Solar panel as photocell for day & night working mode(dusk to dawn mode). ON/OFF button interface. Battery: VRLA (Value-Regulated Lead Acid battery).

Optional Extra's:  GPS Synchronization. GSM cellphone monitoring. Infrared LED for pilot using NVG(Night Vision Goggles). Remote control ON/OFF.

Light Characteristics

Light Source: Ultra high intensity CREE LED
Emitting Color: White
Intensity (cd):20000cd±25% (Daytime), 2000cd±25% (Night)
Horizontal Output (degrees):360
Vertical Divergence(degrees):>3
Flash Characteristics:Flashing20-60FPM
Operation Mode:24hours operation
LED Life Experience(hours):>100,000.





---------------------------------------------------------------------------------------------------------

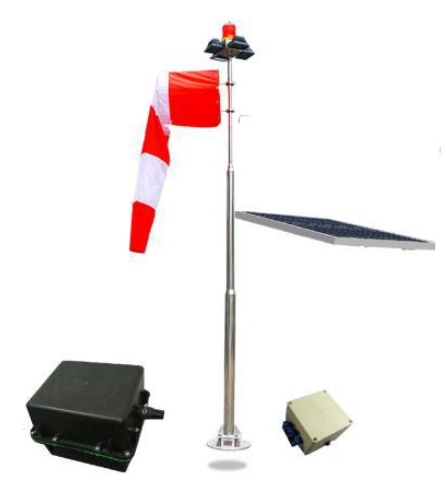

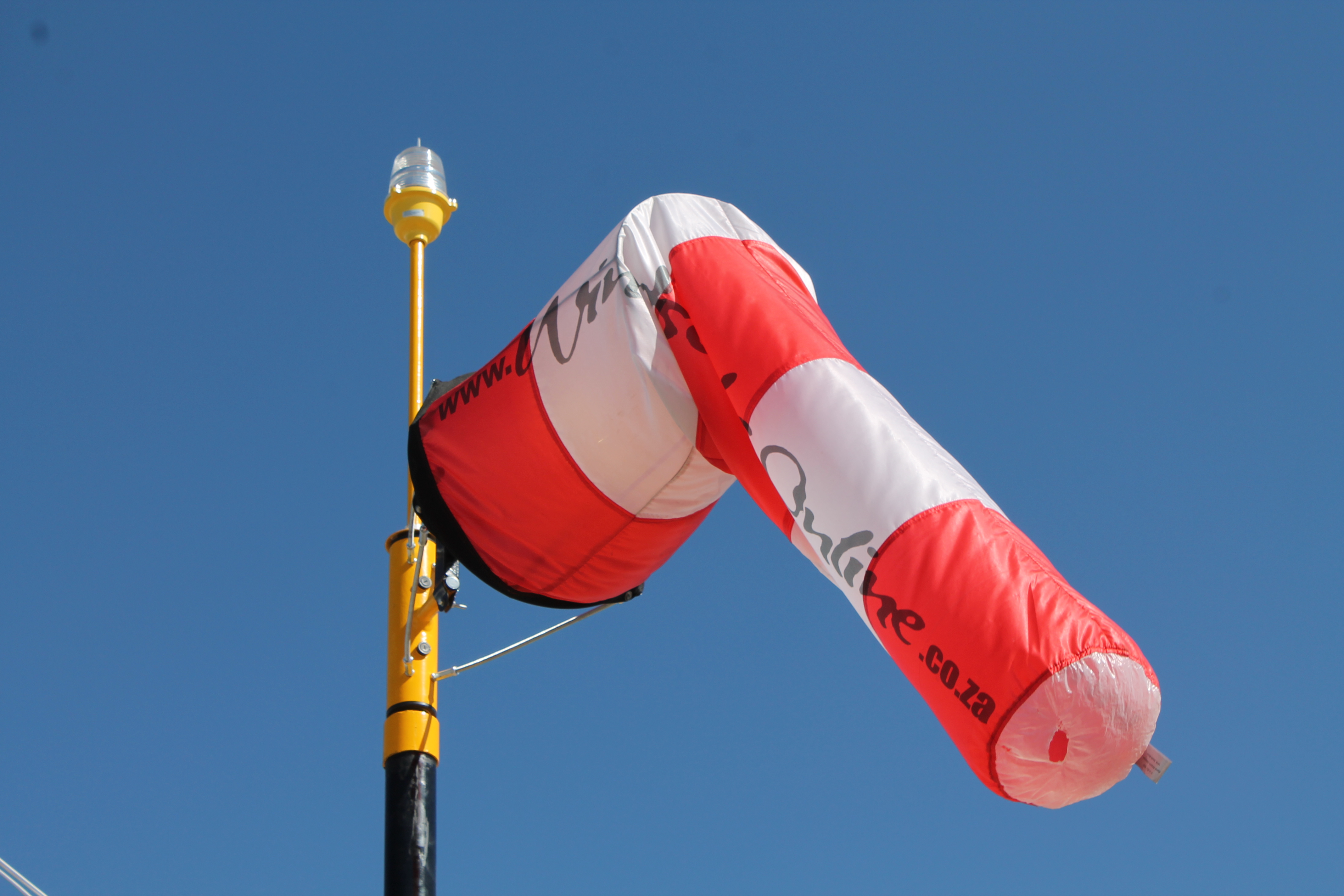

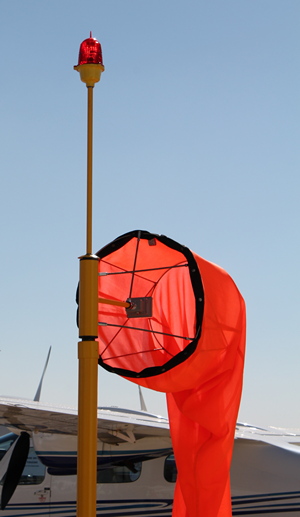

 AL-HP-1S SOLAT OBSTRUCTION LIGHT ONTOP OF HELIPORT WINDSOCK

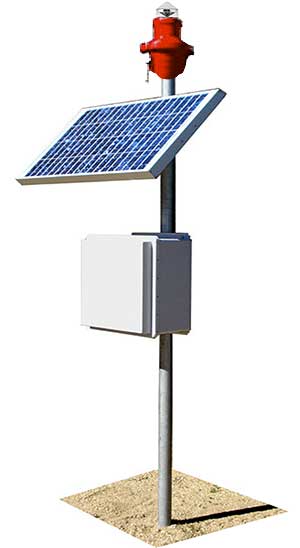

AL-HP-1S Solar Obstruction Light on top of Heliport Windsock

Solar Panel with Battery addED to Windsock and pole  (Windsock, Pole & Obstruction light NOT included).
As Aerodrome's need to be equipped with at least one wind cone as a wind direction indicator including an obstruction light on top for aircraft warning, the AL-HP-1S Heliport Solar Windsock is supplied with one Solar panel and a battery with an ON/OFF switch. The Windsock, Pole and Onstruction light is not included).
Compliance: ICAO Annex 14 Volume ǁ Heliports 5.1.1 and FAA AC 150/5390-2B Heliport Design Guide.

Features :

Power supply available in 12VDC. Pole is made of corrosion resistance and wind resistance stainless steel 304 (SS316 is optional). Pole height is customized (1meter,2meter,2.5m,3m,4m,5m...). One obstruction light on top, one floodlight for illumination. Windsock color is: orange (Nylon), red/white (PVC). Wireless remote control (3-4KM) & photocell for day/night operation.

Windsock dimension:
Pole height: ＜4m, Length:1.2m, big diameter:300mm, small diameter:150mm.
Pole height: 4m-6m, Length:2.4m, big diameter:600mm, small diameter:300mm.
Pole height: ＞6m, big diameter:900mm, small diameter:450mm.





---------------------------------------------------------------------------------------------

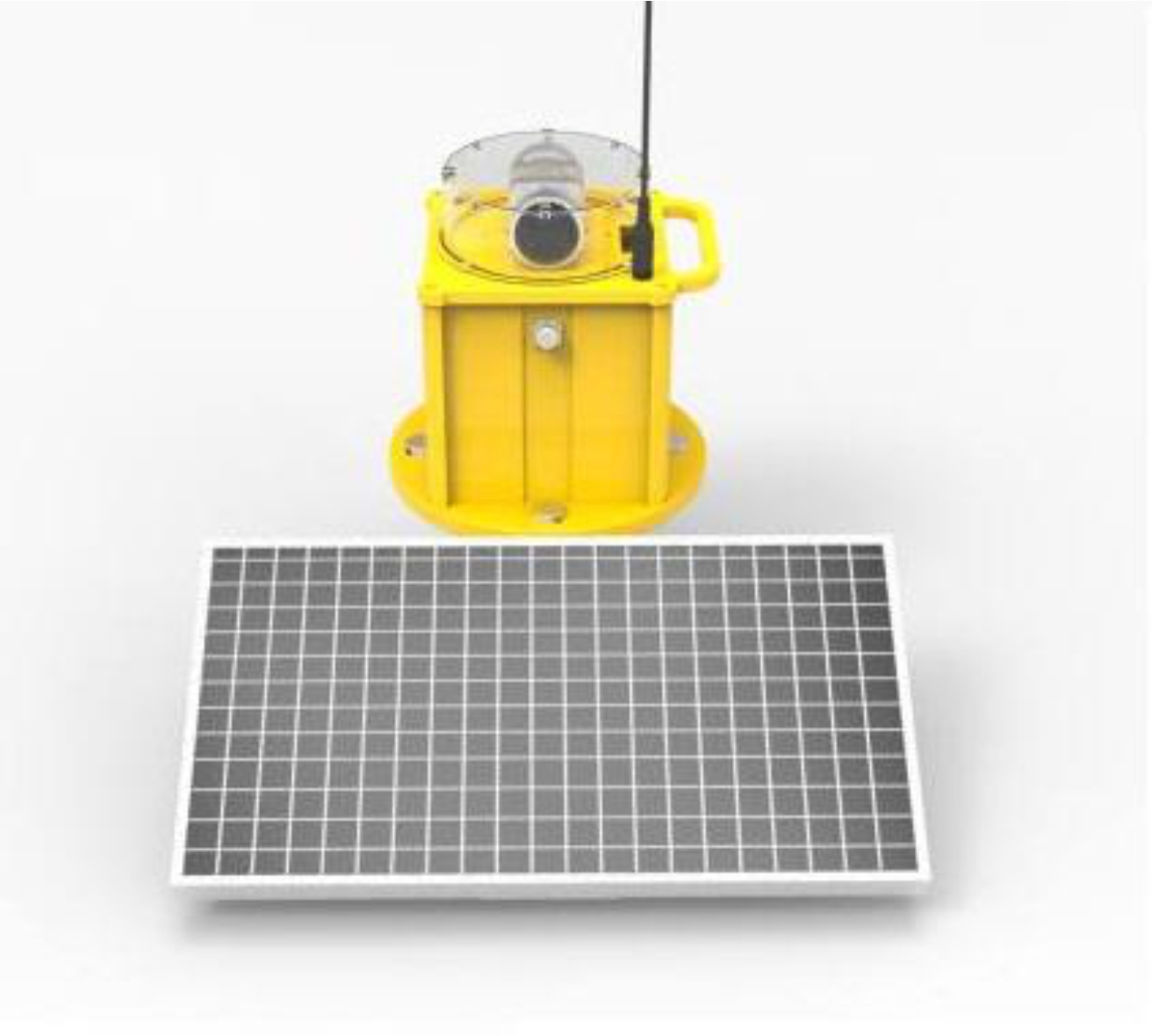

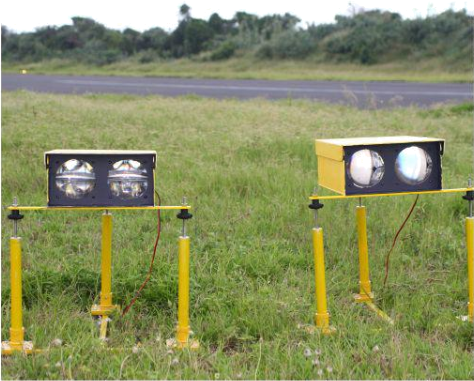

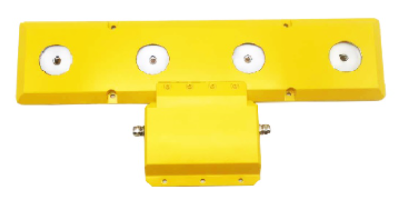

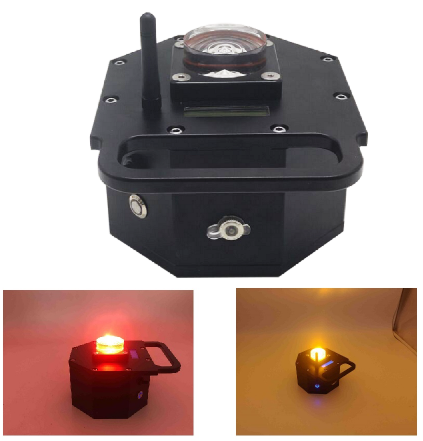

 AL-SA-S3 solar medium intesity combined optics obstruction light

AL-SA-S3 Solar Medium-Intensity Combined Optics Obstruction Light

AL-SA-S3 is a medium intensity light, combined optics (bi-and omnidirectional); designed for permanent usage at
Non-Precision Runways located in regions without access to electricity and high photovoltaic potential.
Solar power system is equipped for operating 365 days on solar energy.
Compliance
ICAO Annex 14 Vol.I (7th.Edition,July 2016)
CAP437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base
System design
ON/OFF button interface
Wireless remote control by AL-HP-RC
Optional
External battery charger
NVG-compatible infrared (IR) LED
Pilot to ground remote control (VHF radio control)
Application
*Airport, Touchdown and Lift-off area (TLOF), Final Approach and Take-off area (FATO), Taxiway lighting,
Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Runway endlight
*Helipad taxiway
*Emergency operations
*Airport/Airdrome





----------------------------------------------------------------------------------------------





 Contact us for more  information on Solar Obstruction Lights.
