Portable Lights
Portable Solar Lights, Helipad Safety Nets, Custom Lighting Enclosures, Wireless Remote Radio Controllers, Helipad Safety Nets
----------------------------------------------------------------------------------------------------

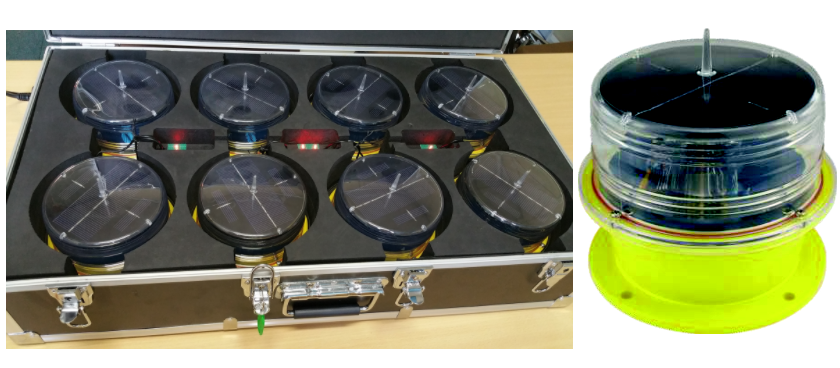

AL-HP-J Solar Helipad Landing Light Kit with 6 or 8 lamps
Solar Portable Helipad Landing Light Kit in Robust Carry case.
1. International advanced solar panel reaching at least 10 years service life.
2. Easy installation and relocation: no specialized work crew required, limited air traffic disruption, and lights are immediately operational.
3. Comprehensive protection in voltage short, over-voltage, floating, charge and temperature.
4. Built-in Solar Panel.
5. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
6. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
7. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
8. Clean, renewable, green and reliable energy source.
9. Dusk-to-dawn operation
10. At least 5 days autonomy without sun and 20 day on flashing mode.
Function
1.Optional wireless ON/OFF control provides on-demand operation from up to 3km away. Antenna is inside light base.
2.Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
3.Optional Battery Charge port: 100~240VAC
4. Optional NVG-compatible infra-red (IR) LEDs
Compliance
ICAO TLOF( Annex 14, Vol. 2Appendix1). ICAO FATO (Annex 14, Vol. 2, Appendix 1).
FAA L-861T(AC No. 150/5345-46D, Eb67). FAA L- 860HR ( EB 87D, EB67D).
Light Specification
Light quantity in one case: 6 or 8 lamp units
Light emitting colour: Steady bright RED LED Light intensity: 10cd
Light dimension: 162*162*160mm
Light weight: 1.2kg
Light material: Base-die casting Aluminium
Lens -UV protected polycarbonate
Battery-lithium ion battery
Battery fully charged time: 8 hours
Case: Carry case with 6 or 8 lamps, case consists of charging ports, indicating charging mode (red), fully charged mode (green)
ON/OFF button under light base Indicator on the lamps show low battery status
Applications: Emergency operations, Helipads, Touchdown and Lift- off area (TLOF), Final Approach and Take- off area (FATO), Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Threshold lighting and obstruction lighting.
---------------------------------------------------------------------------------------------------------

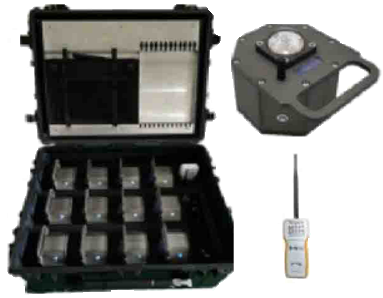

AL-PA-AMC Temporary Helipads & Non-Electric Heliports
Portable Airfield Light AL-PA-AMC is typically used on permanent airport/heliports where there is no cable power available or on temporary helipads, especially for medivac and other emergency situations.
Compliance: ICAO Annex 14 Volume ǁ Heliports 5.3.
Features : Ultra High intensity LED as a light source for saving power consumption and maintenance and consuming 95% less power than equivalent incandescent lights. Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67). Hard anodizing Aluminum housing ensures good UV resistance, shock proof and corrosion proof, anti-corrosion & salt-spray proof. Rechargeable lithium ion battery inside unit to power the LED Charging port. Battery status LCD screen on top. Carry Case Handle for easy mobility.
System design: ON/OFF button located beside base.
Optional: Built-in photo cell. Wireless remote control (433MHZ, 3KM effective distance). NVG-compatible infrared (IR)LED. Air-to-ground Control(VHF).
Carry case (Standard for 8 light in one case, others are optional). Extra battery Charger station for 12 position (Charges up to 12 Lights simultaneously).
Built-in photo cell.
Application: Airport, Touchdown and Lift-off area (TLOF), Final Approach and Take-off area (FATO), Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Helipad taxiway, Emergency operations.
Light Characteristics: Light Source: Ultra high intensity LED. Available colours: Red, Green, Yellow, White, Blue, IP. Flashing Characteristics: Steady (Flashing mode is optional). Operation Mode: 24hours working after switched ON. LED Life Experience (Hours) >100,000.
Electrical Characteristics: Operating Voltage: 12. Circuit Protection: Integrated.
Battery Characteristics: Battery type: Lithium ion Battery. Nominal Voltage (V) 12V/16AH. Battery Service Life: Average 3 years. Autonomy (hours): 60 hours.
Physical Characteristics: Body Material: Hard anodizing Aluminium Alloy. Lens Material: Acrylic. Overall Size (mm): 170x132x112. Weight (kg): 2.4 .
Product Life Expectancy: Average 5 years.
Environment Factors: Ambient Temperature (°C): -55~70. Humidity: 0~100%. Wind Speed: 80m/s. Waterproof: IP67.
---------------------------------------------------------------------------------------------------------
AL-HP-RC Wireless Handheld Remote Controller
Portable Remote Controller. Wireless. Handheld.
AL-HP-RC Wireless Handheld Remote Controller is typically used for all solar / portable airfield lights. Its communication frequency is 433MHZ, the effective distance is up to 3km (more than 3km is customized). This provides easy access to and gives operators full control over multiple commands such as turn ON/OFF light, change the flashing rate of all lights and the configuration of messages.
Compliance: ICAO and FAA regulations and CAP437 (offshore helipads).
Application: Solar Airport Lights, Touchdown and Lift- off area ( TLOF) light, Final Approach and Take- off area ( FATO) light , solar Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting.
Features: Light weight for easy hand use, Function: turn on/off light, choose difference group of light, change flashing rate, emergency mode, Antenna is removable.
-------------------------------------------------------------------------------------------------------

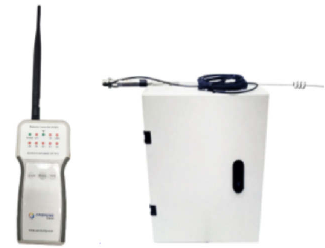

AL-HP-G-VHF Heliport Light Radio Controller
Permits pilots to turn on airfield lights utilizing the existing aircraft VHF 118-137 MHZ band radio when flying to an airport or heliport.
Compliance: ICAO and FAA regulations and CAP437 (offshore helipads).
Features: Low maintenance costs. Protected from input transients, output overload, over-voltage, and over temperature conditions. System may be set to respond to 3, 5 or 7 clicks (default setting: 5 clicks) to set the light intensity of the dimming light(3 click-25%, 5 click-50%, 7click-100%), it will control Mimic AeroLED dimming heliport lighting only. Adjustable activation duration (user programmable 1, 5, 15, 30, 45 and 60 minutes)(default setting: 15 minutes).
Frequency of signal transmission: 137-174/400-470MHZ
Frequency of signal reception: 118-136MHZ
Solar system(solar panel, battery) is optional for AL-HP/G-VHF. Photocell control is option
--------------------------------------------------------------------------------------------------

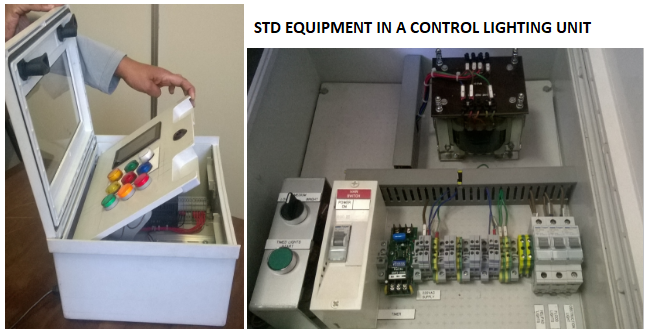

AeroLED Lighting Control Enclosure
For Standard Equipment in a Control Unit
• Lighting protection.
• Light dimming switch.
• Radio dimming and control. (only if requested)
• Test switch. (Over-ride)
• 220v to 24v transformer.
• Individual control switches for each circuit. (Perimeter, flood and obstruction lights)
• Main Power supply cut-off switch.
Control unit box Specs.• External adjustable mounting bracket , horizontal, vertical or 45° angles.
• Internal Stainless Steel hinges.
• Mounting brackets are Stainless Steel.
• DIN rail mount with M6 bolt and nut.
• The height of the DIN rail is easily adjustable.
• Removable inner door.
• Material – SMC.
• IP 66.
-----------------------------------------------------------------------------------------------

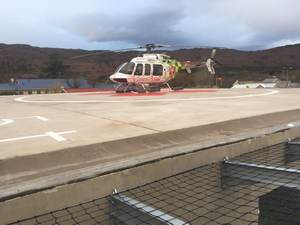

Elevated Helipad Safety Nets
These nets are attached horizontally between steel I-beams on High-rise buildings with Helipads.
HEAVY DUTY SAFETY NETS are manufactured from 6mm cord, 100 x 100mm mesh and as an option may have shade material woven into the safety net. The shade material catches small and light objects like screws, nails, etc and the thick safety net with a breaking strength of over 400kg per cord, catches heavier objects. Shape and size of net can be manufactured according to requirements and adheres to ISO safety regulations.
Please note:
1. Special care has to be taken when securing the HEAVY DUTY SAFETY NET. Heavy objects, including workers may fall from net height .
2. The mounting of the netting to the wall and/or scaffolding/form-work has to be correct. Mounting to concrete has to be undertaken with 12mm raw-plugs and raw-bolts.
3. The netting is suitable for all weather with a life span of 8 years in direct sunlight.
----------------------------------------------------------------------------------------------------
Contact us for more information on Portable Aviation Lights
