Medium-Intensity Obstruction Lights

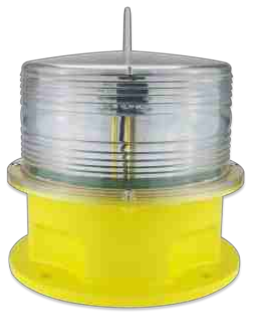

AL-MI-C Medium-Intensity Single Obstruction Light
This LED Medium-intensity light can be used alone on the top of the high-rise building, high chimney, Telecom tower etc. whose height is between 45m and 105m.
Application: AL-MI/C Medium-intensity red light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc. when the height is 45-105 meters, and low intensity lights installed on lower places. Medium-intensity type B light also used with Medium-intensity type A and high-intensity light when obstacles are more than 105meters.
Compliance: ICAO Annex 14 Volume 1,Sixth edition, 2013,table 6.3 Medium Intensity Obstruction Light and FAAL-864.
Features
LED a slight source saving power consumption and maintenance, 95% less power than equivalent in candescent light.
Power supply available in DC(12-48VDC) or AC(110-240VAC). Bird deterrent spike on top. Unique designed polycarbonate lens for converging light and also provides corrosion resistance, shock and vibrations protection. Built-in photocell for day/night operation (dusk to dawn operation). Surge and lightning protection.
Optional Extra's: Alarm contact for remote monitoring. Infrared LED for pilot using NVG.GMS cellphone monitoring. RS485 communication part for monitoring. GPS synchronization. Adjustable flashing rate (20-30-40-50-60).
Light Characteristics
Light Source: LED
Available Colours: Red (Other colour is optional)
Intensity(cd):2,000cd±25%
Horizontal Output (degrees):360
Vertical Divergence (degrees) >10
Flash Characteristics: Steady burning
Operation Mode: Dusk-to-dawn Automatically as standard 24hours operation as option
LED Life Experience(hours):>100,000.
---------------------------------------------------------------------------------------------------

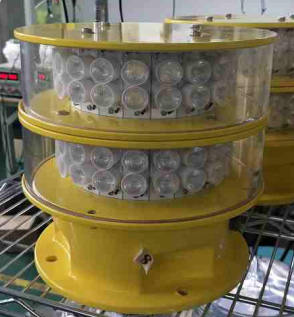

AL-MI-I Medium-Intensity Double Obstruction Light
Red LED light flashing colour is designed for marking the top of obstacles whose height is between 45 to 105meters. Main-standby mode ensures obstacles are always marked even when the light fails. If the top main lamp-light fails, the standby lamp automatically turns on.
Compliance: ICAO Annex 14 Volume 1,Sixth edition, 2013, table6.3 Medium Intensity Type B Obstruction Light and FAAL-864.
Features
High intensity LED as light source saving power consumption and maintenance than the incandescent light or halogen type lamp. Power supply available in 12VDC, 48VDC, 110VAC, 240VAC. Unique design with UV protected polycarbonate lens for converging light. UV protection Powder coated bright yellow colour base for better visibility. Base material die casting aluminum for strong corrosion resistance, Shock and Vibrations protection. Built-in photocell for day/night operation (dusk to dawn operation). Surge and lightning protection. Main standby mode.
Optional Extras: Alarm contact for remote monitoring. GPS synchronization.
Application: On the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when obstacle height is 45-105meter, and can work with low intensity lights stalled on lower places.
Light Characteristics
Light Source: High intensity LED
Available Colours: Red
Intensity (cd): 2000cd±25%
Horizontal Output (degrees):360
Flash Characteristics:20-60 flashes per minute
Operation Mode: Dusk-to-dawn Automatically as standard, and 24hours operation as option.
LED Life Experience (hours): >100,000
*Also available as a Single Medium-Intensity Obstruction Light.
-----------------------------------------------------------------------------------------------------

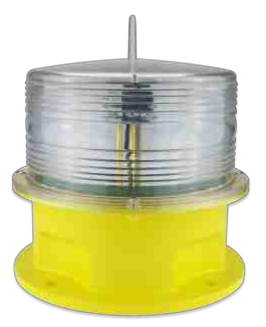

AL-MI-E1 LED Medium-intensity Type B Aviation Obstruction Light
This can be used alone on the top of a high-rise building, high chimney, Telecom tower etc where the height is between 45m and 105m. It flashes 20-60 times in red colour per minute at night. Built-in photocell makes the light turn-off at day time automatically.
Compliance: ICAO Annex 14 Volume 1, Sixth edition, 2013, table6.3 Medium Intensity Type B Obstruction Light and FAAL-864.
Features
LED as a light source saving power consumption and maintenance, 95% less power than equivalent incandescent light. Power supply available in DC (12-48VDC) or AC (110-240VAC). Bird deterrent spike on top. UV & vibration protected polycatbonate lens for converging light. Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection. UV protection Powder coated bright yellow colour base makes better visibility. Base material is die cast aluminium which has strong corrosion resistance, shock and vibration protection. Built-in photocell for day & night operation (dusk to dawn operation). Surge and lightning protection.
Optional Extra's: Alarm contact for remote monitoring. Infrared LED for pilot using NVG. GSM Cellphone monitoring. RS485 communication part for monitoring. GPS synchronization. Adjustable flashing rate (20-30-40-50-60).
Application: This LED Medium-intensity Type B Aviation Obstruction Light can be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105meter, and where low intensity lights installed on lower places.
Medium-intensity type B light also use with Medium-intensity type A and high-intensity light when obstacle is more than 105meter.
Light Characteristics
Light Source: LED
Available Colours: LED Red (Other colour is optional)
Intensity (cd): 2,000cd±25%
Flash Characteristics:20-60times/minute
Operation Mode: Dusk-to-dawn Automatically as standard, 24hour operation
LED Life Experience (hours): >100,000
------------------------------------------------------------------------------------------------
AL-SA-S3 Solar Medium-Intensity Combined Optics Obstruction Light
AL-SA-S3 is a medium intensity light, combined optics (bi-and omnidirectional); designed for permanent usage at Non-Precision Runways located in regions without access to electricity and high photovoltaic potential. Solar power system is equipped for operating 365 days on solar energy.
Compliance: ICAO Annex 14 Vol.I (7th.Edition,July 2016) | CAP437
Features
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
PC housing, UV resistance, shockproof and corrosion proof.
Powder coated die casting aluminum base
System design
ON/OFF button interface
Wireless remote control by AL-HP-RC
Optional
External battery charger
NVG-compatible infrared (IR) LED
Pilot to ground remote control (VHF radio control)
Application
*Airport, Touchdown and Lift-off area (TLOF), Final Approach and Take-off area (FATO), Taxiway lighting,
Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting, Runway endlight
*Helipad taxiway
*Emergency operations
*Airport/Airdrome
---------------------------------------------------------------------------------------------------------
AL-MS/A Solar Medium-Intensity Type A Obstruction Light
This Medium-intensity Type A Aviation Obstruction Light flashing a white colour, is designed for marking the tops of obstacles whose height is between 105 to 150meters. Side open Stainless steel 304 material of battery box can be easily opened for maintenance convenience.
Compliance: ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type A Obstruction Light and FAAL-865.
Features
Ultra-high intensity CREE LED as a light source saves power consumption and maintenance. UV & vibration protected polycarbonate lens for converging light. Self-contained without external power supply. No wiring required. Side open stainless steel battery box. Battery VRLA (Value-Regulated Lead Acid battery). Solar panel as photocell for day & night working mode(dusk to dawn mode). ON/OFF button interface.
Optional Extra's: GPS Synchronization. GSM cellphone monitoring. Infrared LED for pilot using NVG (Night Vision Goggles). Remote control ON/OFF.
Light Characteristics
Light Source: Ultra high intensity CREE LED
Emitting Color:White
Intensity (cd):20000cd±25%(Daytime),2000cd±25%(Night)
Horizontal Output (degrees):360
Vertical Divergence(degrees):>3
Flash Characteristics:Flashing20-60FPM
Operation Mode:24hours operation
LED Life Experience(hours):>100,000
-----------------------------------------------------------------------------------------------
AL-MS/B1 Solar Medium-Intensity Type B Obstruction Light
This Medium-intensity Type B Aviation Obstruction Light flashing a red colour, is designed for marking top of obstacle which height is between 45 to 105meters. CREE Ultra high intensity LED is used as a light source which makes performance better. Four (4 )solar panels are integrated into the assembly and mounted to collect sunlight at all angles.
Compliance: ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light and FAA L-864.
Features
Ultra-high intensity CREE LED light as a source saving power consumption and maintenance. UV & vibration protected polycarbonate lens for converging light. Self-contained without external power supply. No wiring required. 4-side mono crystalline silicon solar panel conversion efficiency is better than poly crystalline silicon. Battery VRLA (Value-Regulated Lead Acid battery). Solar panel as photocell for day & night working mode(dusk to dawn mode).Interface ON/OFF button is more reliable and easier for local control.
Optional Extra's: GPS light flashing Synchronization. GSM cellphone monitoring. Infrared LED for pilot using NVG. Remote control ON/OFF. External battery charging port.
Application: On the tops of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and facilities which have high lightning protection requirements that mostly come with the low intensity lights which are installed on lower places.
Light Characteristics
Light Source:Ultra high intensity CREE LED
Emitting Colour:Red
Intensity(cd):2000cd±25%
Horizontal Output (degrees):360
Vertical Divergence (degrees):>3
Flash Characteristics:Flashing 20FPM
Operation Mode:Dusk-to-Dawn operation
LED Life Experience(hours):>100,000
---------------------------------------------------------------------------------------------
Contact us for more information on Medium-Intensity Obstruction Lights
