Low-Intensity Obstruction Lights

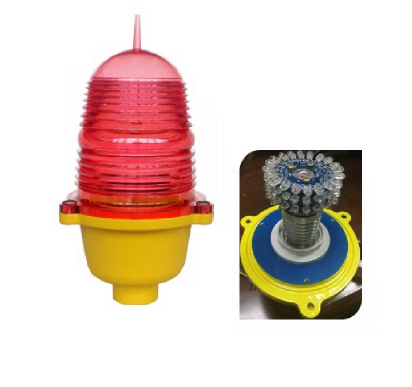

 AL-LI-BE E27 LED Single Obstruction Light Low-Intensity

The E27 LED is a Low-intensity steady burning RED aviation obstruction LED light designed for marking tops of obstacles that do not exceed 45 meters in height. As this type of Bulb is used throughout the world, it is easily replaceable if it breaks.

Compliance: ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A/B Obstruction Light. FAAL-810

Features: LED as a light source saving power consumption and maintenance, 95% less power than equivalent in candescen light. Power supply available in DC (12-48VDC) orAC (110-240VAC). Bird deterrent spike on top. Uniquely designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection. UV protection Powder coated bright yellow colour base makes for better visibility. Base material is die casting aluminium which has strong corrosion resistance, Shock and Vibration protection. 3/4 inch or 1 inch (optional) thread hole makes for easy pole installation. System Design Steady mode. E27 base LED.

Optional Extra: External photocell for day/night operation. NVG (Night Vision Goggles) compatitble LED.

Application: AL-LI-BE E27 LED low-intensity light can be used alone on the tops of High-rise Buildings, High Chimney, marking towers (Telecom, GSM,Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m. When obstacle object is higher than 45m, AL-LI/BE can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.

-----------------------------------------------------------------------------------------------------------

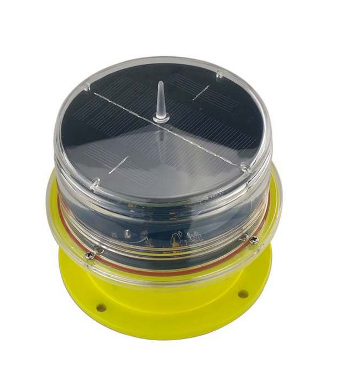

AL-LS-A Single Solar Powered Low-Intensity Obstruction Light

AL-LS/A is a self-contained obstruction light which consists of a solar panel, battery and lamp. There is no need for external power input.The vertical degree of the solar panel is adjustable and ensuresmaximum sunlight in different areas.It is designed for marking the tops of obstacles that not exceed45meters in height.

Compliance: CAO Annex 14 Volume 1, Sixth edition 2013, table 6.3 Low Intensity Type A/B Obstruction light.FAAL-810.
Features: LED as light source, life experience>100,000hours.With bird needle to prevent bird drop. UV & vibration protected polycarbonate lens for converging light.
Powder coated die casting aluminium base, light fastness, snow and rain resistance. Battery box made of corrosion resistance 304 stainless steel. Self-contained without external power supply. No wiring required saving on cable & installation costs. Solar panel as sensor (Photodiode) for day & night working mode (dusk to dawn mode). ON/OFF button under base for easy control. Steady/flashing (20fpm) adjustable switch. Solar panel is adjustable (Vertical 15-90°).
Optional Extras:  GSM cellphone monitoring. Infrared LED for pilot using NVG (Night Vision Goggles). Remote control ON/OFF.

Applications: This low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, WindTurbine where there is no cable power supply and those facilities which have high requirements on lightning protection. Used alone on the top of obstacles whose height is less than 45meters.

Light Characteristics

Light Source: LED Emitting
Colour: Red Intensity(cd): Ss32.5cd
Horizontal Output (degrees): 360
Vertical Divergence (degrees): >10
Flash Characteristics: Steady/Flashing (20fpm) adjustable Operation Mode: Dusk-to-Dawn operation

Low-Intensity Double Solar Powered Obstruction light LED Life Experience (hours): >100,000

----------------------------------------------------------------------------------------------------------

AL-LS-L Single Solar Powered LED Obstruction Low Intensity Light

Features
International advanced solar panel reaching at least 10 years’ service life. Easy installation and relocation: no specialized work crew required, limited air traffic disruption and lights are immediately operational. Comprehensive protection in voltage short, over-voltage, floating, charge and temperature. Built-in Solar Panel. Self-contained and low maintenance: all components are incorporated within a compact,stand-alone unit. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000 hours. Clean, renewable, green and reliable energy source. Dusk-to-dawn operation. At least 5 days autonomy without sun and 20 day on flashing mode.

Solar Powered Portable Airfield Light
Light intensity: ≥32cd
Working mode: Steady-burning mode or Flash mode
Light source: LED,100,000hours service life
Solar panel: Monocrystalline silicon
Material Housing: Polycarbonate
Base: Die cast Aluminium
Autonomy: At least 5 days (Option 20days)
Battery: lithium ion battery, 3. 7V 10AH
Overall Size: Φ220 by 233
Installation Size: Φ190 by M10
Weight: 2Kg
Emitting Colour: Red, green, white, yellow/ white, yellow/white, Red/white (Customized)
Ambient Temperature: -40℃~+60℃
Wind load: 80m/s
Protection Standard: IP68
Optional: charging port, remote control, NVG compatible infra-red (IR) LED's

---------------------------------------------------------------------------------------------------------

Contact us for more information on Low-Intensity Obstruction Lights
