Obstruction Lights

Aviation Obstruction Warning Lights are used on obstructions that pose a risk to aircrafts. Regulations are set out by an international authority called ICAO (International Civil Aviation Authority) and local authorities adhere to and enforce this regulation locally. SACAA is our local authority.

AL-HP-B Heliport Beacon

A heliport beacon should be provided at a heliport where long-range visual guidance is considered a necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights. The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.

Application: Helipad/Heliport/Helideck.

The AL-HP-B flashes colour white 4 times/0.8second and stops for 1.2s, then starts a new cycle for 2 seconds (0.8s+1.2s).

Compliance: ICAO Annex 14 Volume 11 Heliports 5.3.2. FAA AC 150/5390-2B Heliport Design Guide. CAP 437.

Features: Xenon as light source with service life more than 108 times. Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection. UV protection Powder coated bright yellow colour base for better visibility. Base material is stainless steel 304 which has strong corrosion resistance, shock and vibration protection.
Optional: Controller for power supplying and turn ON/OFF light. VHF pilot to ground remote control.

--------------------------------------------------------------------------------------------------

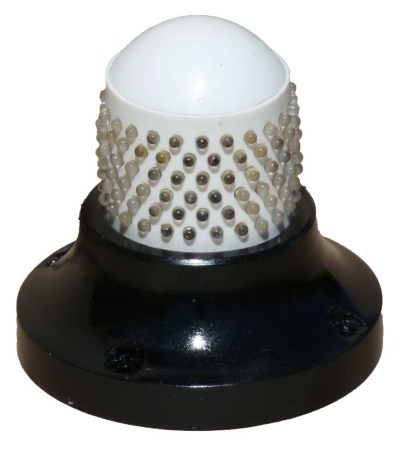

Avia B Aviation Obstruction Lights for Cranes

Supply of Led Lights on a standard base. Brackets available on request.

Applications: Tower Cranes, Cranes, Towers, Oil Rigs, Chimney Stacks, Buildings or any other obstruction from 0-150m high.

Information
Type B aviation obstruction warning light, the Avia B is designed to be fitted on any obstruction 0 - 150m high. The light has a >32 candela light output. Two lights per structure is recommended yet you can also use the Avia B singularly per position. Due to their excellent tolerance to shock and vibrations, general beacon warning lights are regarded as the perfect choice for use on machinery, or in areas that are subject to excessive vibrations. They also pose an added advantage of long lasting and durable performance characteristics. With their toughness and ability to maintain high performance in tough situations, they are an excellent choice for extreme conditions. The Avia B light is manufactured in South Africa.

Features
Easy to mount, boasting one touch installation - resulting in low maintenance.
Resin encapsulated - Vibration, water and dust resistant.
Energy effcient L.E.D technology - Longer lasting and cost effective.
360 degree light output.
Can be manufactured to ExD standards, currently manufactured to Ex M standard.
Colours Available: Red & White.
Specialised Voltage: Many voltages can be supplied and in particular where only three phase power exists without a neutral, the lights can be supplied to work across two phases and can accommodate 380 and 550 VAC.
Voltages Available: 12-24 VDC, 110, 220, 380 and 550 VAC.
Flashing or Non Flashing: The lights can be manufactured to be flashing, or non-flashing (static).
Side or Bottom Entry: The power cable can enter from the side or underneath.
IP Rating: These lights are made to the standard of IP 68.
Mounting Options: ES Screw, 20mm Conduit or Flat Base.

--------------------------------------------------------------------------------------

 Contact us for more information on Obstruction Lights.
